GENERAL INFORMATION

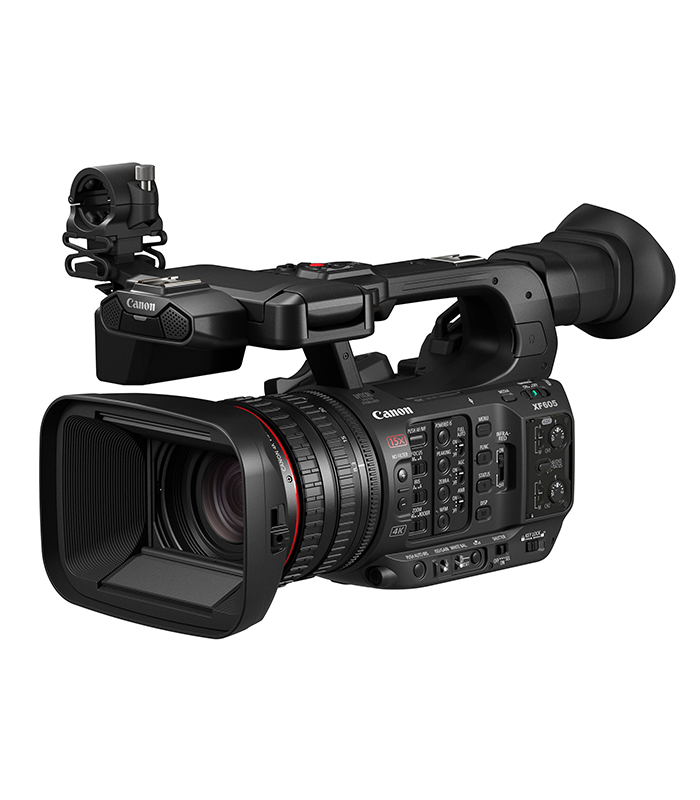

Canon XF605 delivers a new level of performance and control for solo shooters. With 15x optical zoom, professional connectivity and advanced autofocus including Eye Detection AF and intelligent Head Tracking for the first time in the XF Series, it’s a versatile camcorder that fits comfortably in the studio or in the field.
Broadcast-quality Video
The large 1.0-inch Type CMOS sensor and DIGIC DV7 processor work in harmony to deliver 4K UHD 60P/50P in 4:2:2 10-bit XF-AVC and MP4, as well as FHD 120P HFR for exceptional image quality and flexibility in post-production.
Professional optics and control
Resolve fine details with the 4K ready L-Series lens offering 15x optical zoom, and equipped with independent rings for Zoom, Focus and Iris control. Also featured are three Image Stabilisation modes, as well as built-in ND filters and Infrared mode, offering even greater control.
Advanced autofocus
Acquire pin-sharp focus on your subject’s eyes with Eye tracking AF*, and intelligent head tracking via EOS iTR AF X, an innovative ‘deep learning’ technology to track a subject’s head, even when looking away.
* Eye Tracking AF also supported in S&F modes.
Professional connectivity and streaming
XF605 seamlessly integrates into live and offline environments, with 12G-SDI, Wi-Fi and Ethernet for IP streaming. The Content Transfer Mobile app enables the editing of News ML-G2 compliant metadata, transferring of footage to your iPhone, and direct uploading to FTP servers.
Canon’s XC Protocol for multi-camera control solutions are also supported.
MORE FEATURES
Intuitive controls and customisation
Stay in control and customise the XF605 to your needs with independent controls and 11 assignable buttons. An enhanced touchscreen interface allows for quick and intuitive control of on-screen settings, menu navigation and playback control. A new multi-function accessory shoe opens the door for additional accessories with expanded capabilities.
Recording Versatility
Capture an expanded dynamic range in Canon Log 3 for flexibility in post-production or shoot directly in broadcast-ready PQ or HLG HDR formats. Simultaneous recording to dual SD cards in a variety of formats (incl. All-I & Long GOP) offers maximum flexibility for your production needs.
Content transfer mobile app
Content Transfer Mobile is an app for iPhone designed to enable the editing of News ML-G2 standard compliant metadata pre/post capture, as well as the ability to import footage from the camera to the phone, including instant transfer to FTP servers.
Shared colour science
XF605 supports the same colour matrices as Canon’s Cinema EOS and EOS R System product ranges, reducing the time needed in post-production to match colour in footage from multiple camera ranges.
Durable and lightweight
With its notably compact size and body weight of approximately 2,010g, XF605 is the perfect ‘carry-on’ companion. Despite its small dimensions, it’s a highly capable workhorse camcorder, with a durable dust and drip-proof design.
TECHNICAL CHARACTERISTICS
| CATEGORY | INFORMATION |
|---|---|
| Sensor Sensor Size | 1.0 type (3.2μm) |
| Sensor Effective Pixels | 8.29 million (Approx.) (Total Pixels: Approx. 13.20 million) |
| Lens Magnification, Focal Length, Aperture | Optical 15x 25.5 – 382.5 mm F/2.8 – 4.5 |
| Lens ND Filter | 3 – Density (ND 1/4, ND 1/16, and ND 1/64) |
| Lens Image Stabilisation | Optical (Powered IS / Dynamic Mode) |
| Lens Control Rings | 3 (Focus / Zoom / Iris) |
| Imaging Engine | DIGIC DV7 |
| Auto Focus | Dual Pixel CMOS AF Eye Detection AF EOS iTR AF X Face Priority AF Face Only AF Tracking AF |
| Infrared Compatibility | Yes |
| LCD Monitor | 3.5-inch Approx. 2.76 million dots Capacitive Touch Panel |
| EVF | 0.36-inch (Approx. 1.77 Million Dots) |
| Media Memory Card | x2 SD Card (UHS-II Compatible) |
| Connectivity SDI | x1 (12G-SDI) |
| Connectivity XLR | x2 |
| Connectivity HDMI | x1 (Type-A) |
| Connectivity USB | x1 Type-A (Host) x1 Type-C (Device) |
| Other Terminals | BNC x2 / Headphone / Mic / Remote A, B / DC |
| Wi-Fi | 2.4GHz/5GHz 11a/b/g/n/ac MIMO |
| Ethernet (Wired LAN) | Yes |
| Accessory Shoe | Cold Shoe +Multi-Function Shoe |
| Included Battery | BP-A30 |
| Included Power Adapter | CA-CP200L |
| Included Charger | CG-A20 |
